What is 5-Axis Machining?

Earlier this year we covered 4-axis machining. Another popular high precision machine is a 5-axis machine. The higher the axis, the more advanced the machine is, meaning, the more opportunities you have when producing tools and parts in your shop.

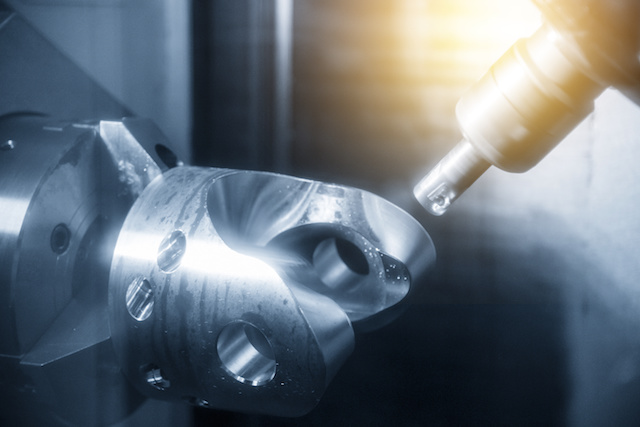

What exactly is a 5-axis machine?

A 5-axis machine provides you with endless options when producing tools or parts. Despite its name, the 5-axis machine doesn’t actually add a true axis. Instead, it is just another type of rotation, allowing for free rotation in any direction. The main difference between a 5-axis machine and a 3-axis or 4-axis machine is exactly what the name entails. Although 3-axis machining is the most popular type of machining used when producing tools, there has been increased use recently in 4-axis and 5-axis machining.

Common misunderstandings related to 5-Axis machining

The 5-axis machine is certainly the most complex of the bunch, but the actual programming isn’t all that complicated. As long as you have a CAM system compatible with 5-axis machining, the actual programming isn’t as time consuming or  complicated as you might think.

Which Type of Machining Do I Need?

Just because a 5-axis allows for more complex parts doesn’t necessarily mean it’s the tool you want to go with. Actually, only a few custom designs really require 5-axis machining. However, if you need incredibly precise, fast work with tight tolerances, then 5-axis is truly your best bet.

For the fast, simple products, use 3-axis machining. As you start to get more advanced, you’ll want to go to a 4-axis machine. These machines allow for very detailed work, engravings, complex drilling and milling, etc. When in doubt, just give us a call.
